Set up your Wi-Fi Hub for Fibre 150/250

[#1]

If you've got Fibre 150 or Fibre 250 we'll send an expert engineer to set up your Wi-Fi Hub, but if you need to set it up yourself for any reason, here's how to do it.

If our records show that you don’t have a TalkTalk Wi-Fi Hub, we'll send one out in the post a few days before your installation day. You won’t need any microfilters so we’ve taken these out of your Wi-Fi Hub box.

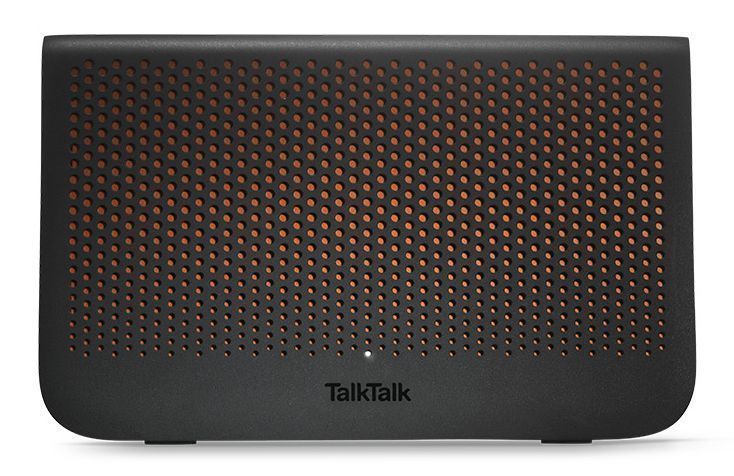

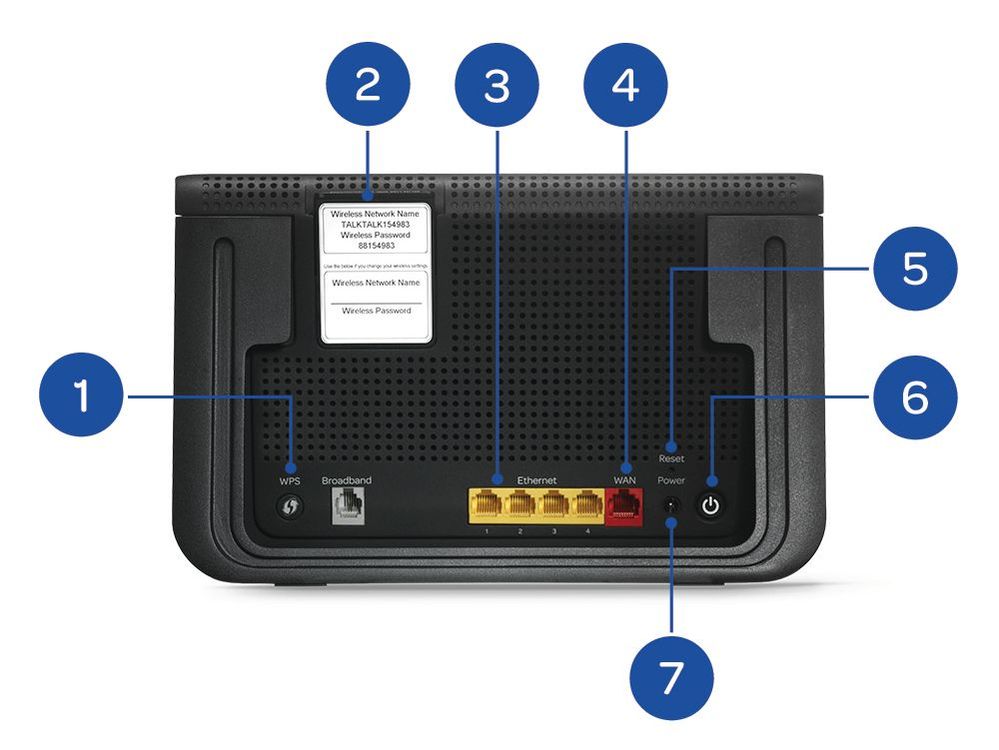

Getting to know your Fibre 150/250 Wi-Fi Hub

Take a moment to familiarise yourself with your Wi-Fi Hub, this will help you to set it up.

1. WPS button



2. Wi-Fi settings card



3. Ethernet ports



4. WAN port



5. Reset button



6. Power button



7. Power port

---

What's in the box

Here's what's included in your Fibre 150/250 Wi-Fi Hub box.

TalkTalk Wi-Fi Hub

Two-part power supply

2x Ethernet cables

---

Getting set up

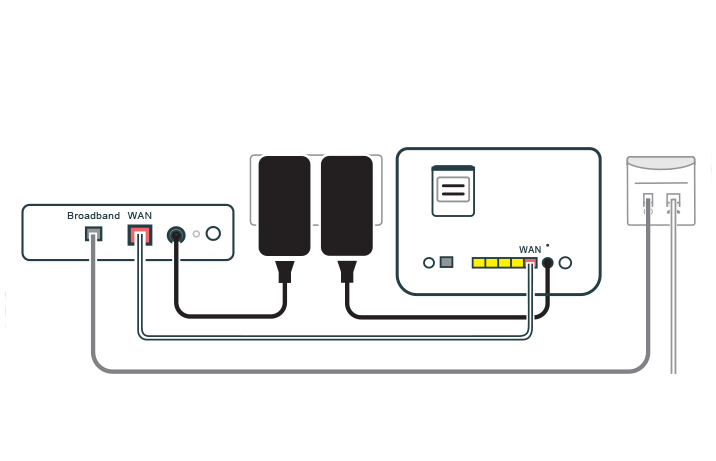

you can connect the Openreach modem to your Wi-Fi Hub using the steps below.

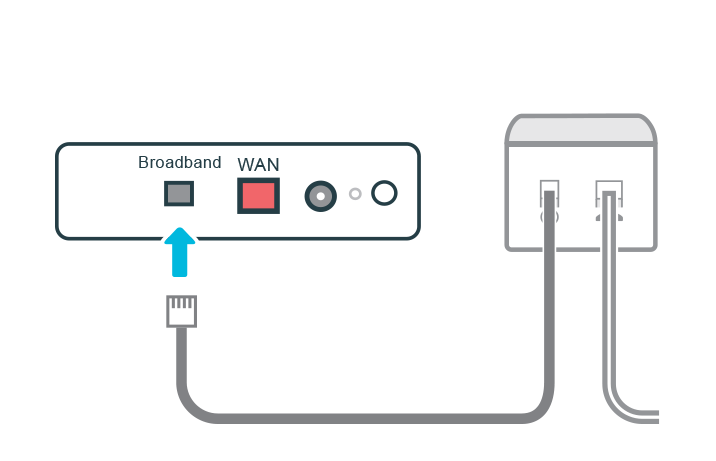

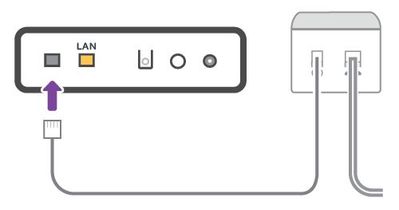

1. Plug one end of the broadband cable into the left-hand port on the Openreach main phone socket


2. Plug the other end into the DSL port on the Openreach modem

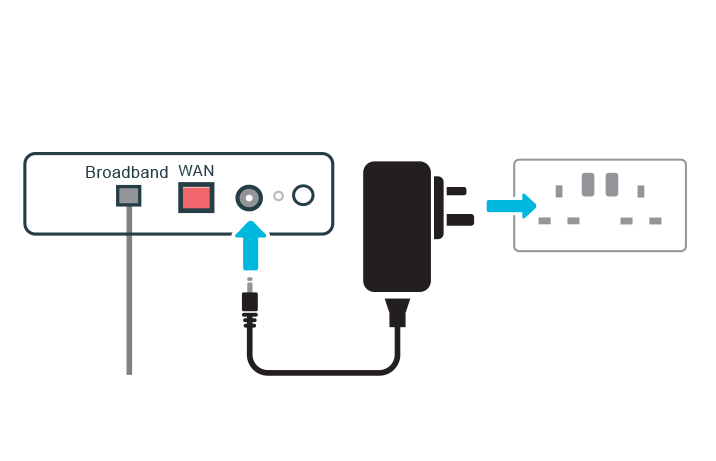

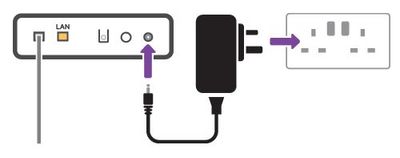

3. Plug the power cable into the modem and wall socket and push the modem’s power button to switch it on

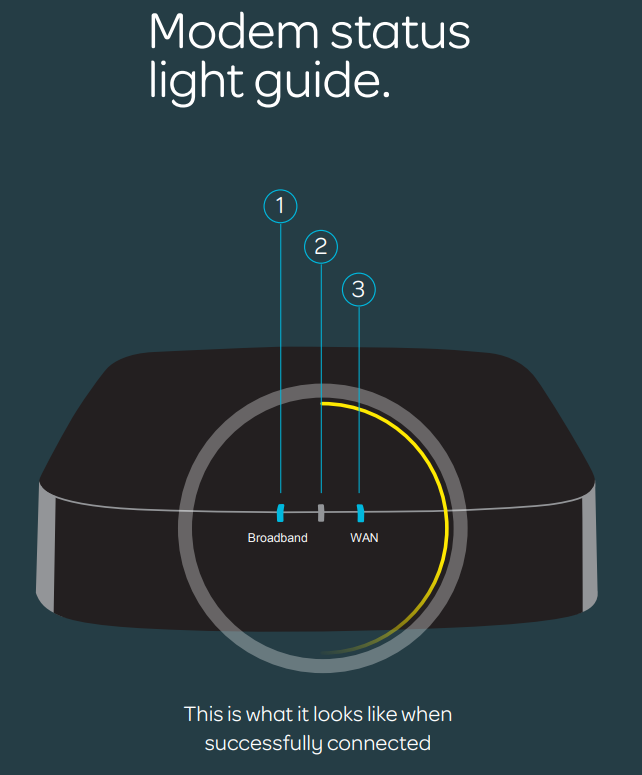

4. The power and DSL light on the modem will turn green

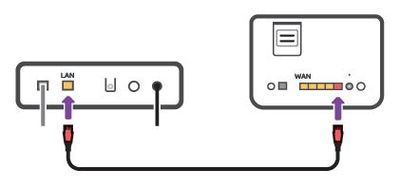

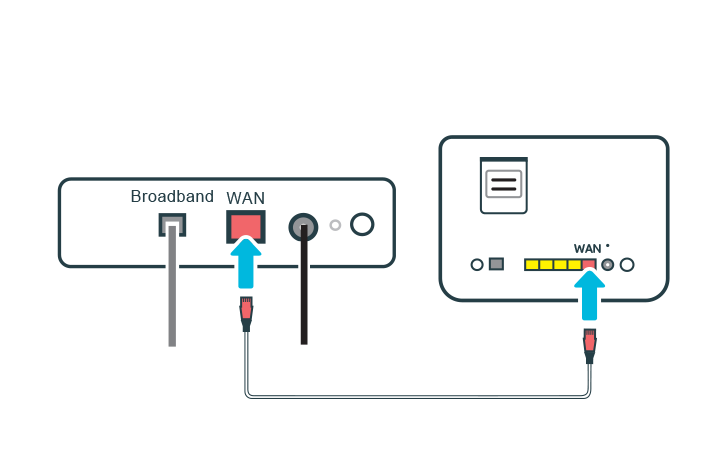

5. Now plug one end of the Ethernet cable into the LAN port on your modem
6. Plug the other end into the red WAN port on the back of your Wi-Fi hub


7. Now plug the power cable into your Wi-Fi Hub and wall socket and switch it on

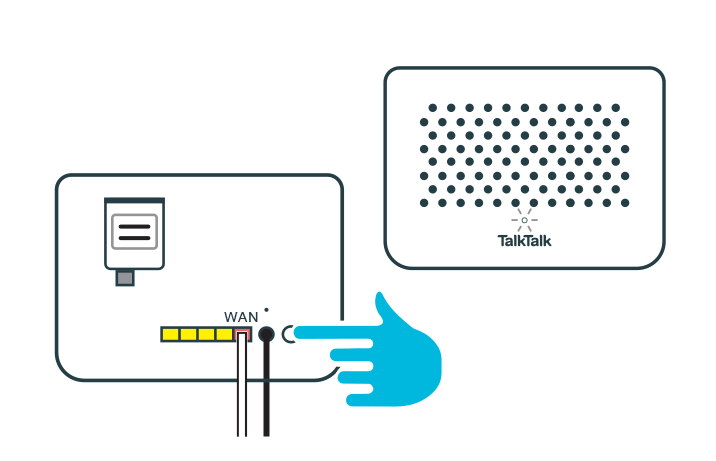

8. Push the power button on the back of your Wi-Fi Hub
9. The LED on the front will turn white when it’s on and connected



---

Using a wired connection

To use a wired connection, simply plug an Ethernet cable into your device. Then plug the other end into any of the yellow Ethernet ports on the back of your Wi-Fi Hub.

Wi-Fi Hub light guide

The light on the front of your Wi-Fi Hub will change colour depending on the status of your connection.

1. Blinking amber – Your Wi-Fi Hub is starting up
2. Blinking amber and white – Your Wi-Fi Hub is connecting to the Internet
3. Solid white – You’re connected to the Internet
4. Solid amber – Your Wi-Fi Hub is verifying your connection. If the light stays solid amber for more than 15 minutes, please contact us

Connect using WPS

Wi-Fi Protected Setup (WPS) lets you easily connect network equipment like wireless printers to your router. Instead of manually typing in your Wi-Fi password, you simply press the WPS button on your Wi-Fi Hub to connect your device. Here’s how to do it:

1. Follow the instructions that came with your device about connecting using WPS
2. Press the WPS button on the back of your Wi-Fi Hub until the light on the front of your Wi-Fi Hub starts flashing amber
3. When your device has connected to your Wi-Fi Hub, the light will turn solid white
4. If the connection fails, the light will flash amber again before returning to solid white
5. Wait until the light turns solid white and then try to connect again
