Port forwarding on Sagemcom FAST 5364

[DavidWorthington]

I'm trying to set a port forward rule to allow node-RED to publish MQTT messages to HIVEMQ from Home Assistant. When I put in the url address of the HIVEMQ broker it gives the message 'invalid ip address'. The port the broker sets is 8883 and I can't change this.

I can only think that the url is too long or too complicated;

b977619d53af4a72a5e60770bebb722f.s1.eu.hivemq.cloud

Is there a way I can get this to work?

Many thanks

[KeithFrench · Accepted solution]

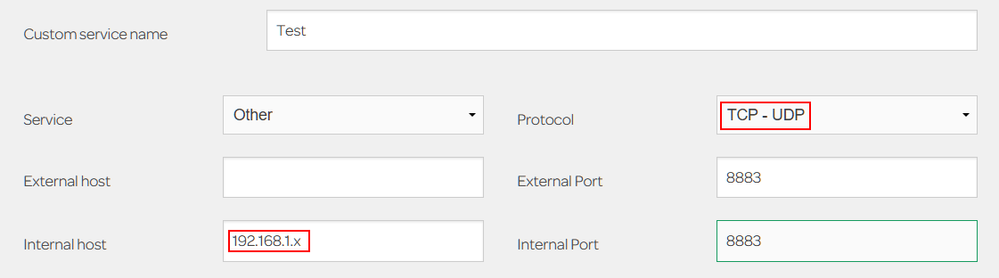

You are configuring this wrong, here is an example of everything you would need. You do not say if this port is TCP or UDP, so I have set this example for both. Then change the Internal host field to the IP address of the device that you are trying to forward this port to. I have used an example of 192.168.1.x, just change the x to the actual IP address:-

Example

If you need any further help, let me know. The first thing I would need is a screenshot of the forwarding rule that you are trying to use.
